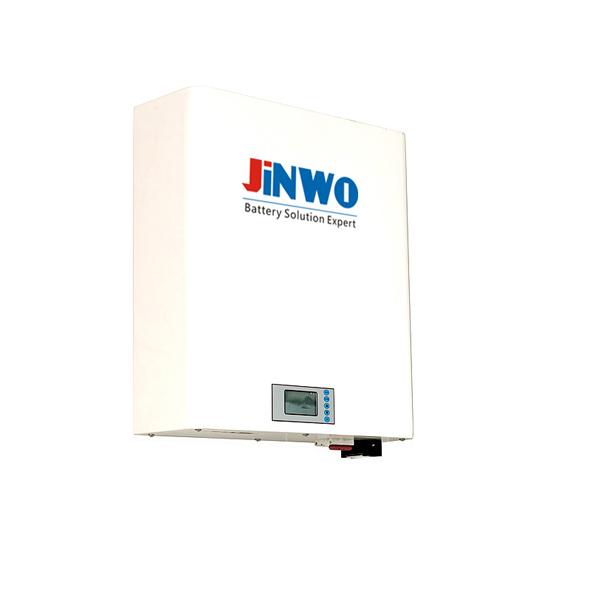

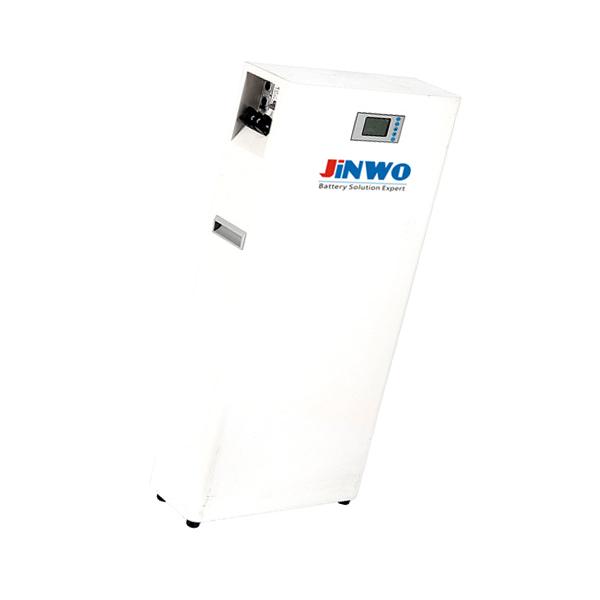

10KWH 48v 200AH Lifepo4 Battery Powerwall For Home Solar Storage System
Our Energy Storage Solutions: JINWO Lithium Iron Phosphate Batteries are a complete energy storage system. The integrated Battery Management System (BMS) monitors and regulates each cell in the battery bank to provide perfectly balanced charging and discharging. Includes fuse and internal DC disconnect to provide battery protection and isolation. The lithium-ion solar battery system is contained in a rugged metal enclosure. Quick and easy installation.
Product Highlights
1. Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
2.No Thermal Runaway with Fire Propagation
3.No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
4. Extended Operating Temperature -4 to 140F
5.98% Efficiency Rate
6.Fast Charge & Discharge Rates
7.10,000 Cycle Life with 10 Years Warranty
8. Cycle One to Several Times Per Day
9.Seamless Integration with All Industry Standard Inverter/Charge Controllers
10.Built-In Safety - BMS with Breaker On/Off Switch for Shipping & Installation
Modular, Scalable & Proven Performance
>Self-powered home
Use solar and Allspark power to reduce reliance on the grid and run your home off solar day and night.
>Backup Power
Protect your home from a power outage with seamless and reliable backup power.
>Energy saving
Reduce your electricity bill, if your utility offers a time-of-use rate plan.
>Home energy control
Manage and control your home energy by our mobile App.
| Type |
Item |
Specification |
| Cell |
Rated capacity |
100Ah |
| Rated voltage |
3.2V |
| Cut-off voltage of charge |
3.65±0.05 V |
| Cut-off discharge voltage |
2.00V |
| Charge temperature |
0ºC~ 60ºC |
| Discharge temperature |
-20ºC~ 60ºC |
| Weight |
2.30±0.5 Kg |
| Cell safety performance |
Crush/Nail/Over charge/Over discharge/ Heating/Free fall etc. |
System parameters |
Configuration |
2P16S |
| Rated voltage |
51.2V |
| Rated capacity |
200Ah |
| Rated energy |
≥10.24KWh |
| Charge current |
100A |
| Max. discharge current |
100A |
| Max. instant discharge current |
130A(3S) |
| Cut-off voltage of charge |
58.4V |
| Cut-off voltage of discharge |
40V |
| Charge temperature |
0ºC~ 60ºC |
| Discharge temperature |
-20ºC~ 60ºC |
Storage
|
≤6 months/:-20 ~ 35 °C,
30%≤SOC≤60%
≤3 months/:35~45 ºC,
30%≤SOC≤60% |
| Net weight |
≈107kg |
